PVM2Wxx
Pl tronics., Inc.
19013 36th Ave. W, Suite H Lynnwood, WA 98036 USA
Manufacturer of High Quality Frequency Control Products

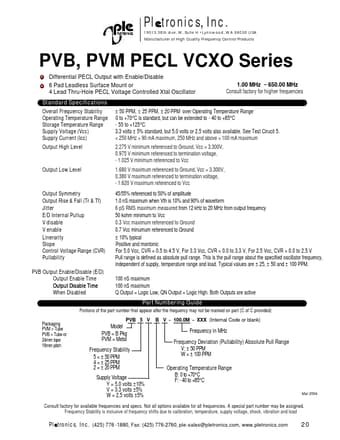

PVB, PVM PECL VCXO Series
Differential PECL Output with Enable/Disable 6 Pad Leadless Surface Mount or 4 Lead Thru-Hole PECL Voltage Controlled Xtal Oscillator
Standard Specifications Overall Frequency Stability Operating Temperature Range Storage Temperature Range Supply Voltage (Vcc) Supply Current (Icc) Output High Level ± 50 PPM, ± 25 PPM, ± 20 PPM over Operating Temperature Range 0 to +70°C is standard, but can be extended to
- 40 to +85°C
- 55 to +125°C 3.3 volts ± 5% standard, but 5.0 volts or 2.5 volts also available. See Test Cirucit 5. < 250 MHz = 90 m A maximum, 250 MHz and above = 100 m A maximum 2.275 V minimum referenced to Ground, Vcc = 3.300V, 0.975 V minimum referenced to termination voltage,
- 1.025 V minimum referenced to Vcc 1.680 V maximum referenced to Ground, Vcc = 3.300V, 0.380 V maximum referenced to termination voltage,
- 1.620 V maximum...
