QA-1000HC

Full Featured Programmable Analog Supply Current Monitor

QA-1000HC Datasheet (105.59 KB)

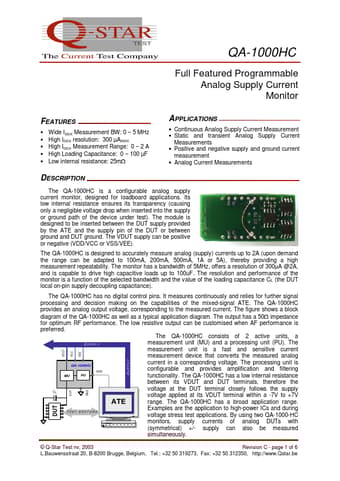

Preview of QA-1000HC PDF

Datasheet Details

Part number:

QA-1000HC

Manufacturer:

ETC

File Size:

105.59 KB

Description:

Full featured programmable analog supply current monitor.

QA-1000HC Features

* Wide IDDX Measurement BW: 0

* 5 MHz High IDDX resolution: 300 µARMS High IDDX Measurement Range: 0

* 2 A High Loading Capacitance: 0

* 100 µF Low internal resistance: 25mΩ APPLICATIONS Continuous Analog Supply Current Measurement Static and transient Analog Supply Current Me

QA-1000HC General Description

The QA-1000HC is a configurable analog supply current monitor, designed for loadboard applications. Its low internal resistance ensures its transparency (causing only a negligible voltage drop when inserted into the supply or ground path of the device under test). The module is designed to be insert.
