QBB150A60 TRANSISTOR MODULE

TRANSISTOR MODULE QCA150A/QBB150A40/60 UL;E76102 M QCA150A and QBB150A is a dual Darlington power transistor module with two high speed, high power Darlington transistors. Each transistor has a reverse paralleled fast recovery diode. QCA150A Series-connected type QBB150A Separate Type IC 150A, VCEX 400/600V Low saturation voltage for higher efficiency. Isolated mounting base VEBO 10V for faster switching speed. Applications Motor Control VVVF , AC/DC Servo, UPS, Switching Power Supply, Ultrason.

QBB150A60 Datasheet (114.22 KB)

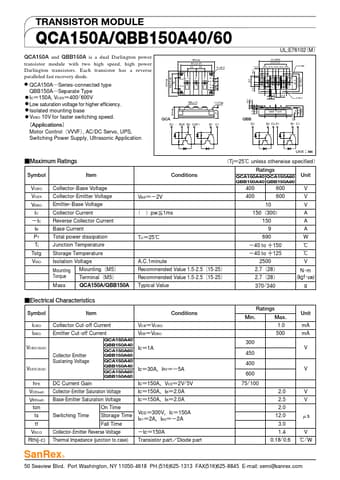

Preview of QBB150A60 PDF
QBB150A60 Datasheet Preview Page 2

Datasheet Details

Part number:

QBB150A60

Manufacturer:

ETC

File Size:

114.22 KB

Description:

Transistor module.
