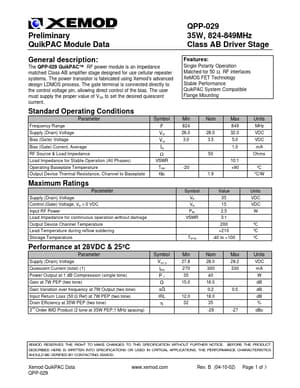

QPP-029 QuikPAC Module Class AB Driver Stage

Preliminary QuikPAC Module Data General .
The QPP-029 QuikPAC™ RF power module is an impedance matched Class AB amplifier stage designed for use cellular repeater systems.

QPP-029_ETC.pdf

QPP-029 Datasheet Preview — Preview of QPP-029 PDF

Datasheet Details

Part number:

QPP-029

Manufacturer:

ETC

File Size:

25.48 KB

Description:

QuikPAC Module Class AB Driver Stage

Features

* Single Polarity Operation Matched for 50 Ω RF interfaces XeMOS FET Technology Stable Performance QuikPAC System Compatible Flange Mounting Standard Operating Conditions Parameter Frequency Range Supply (Drain) Voltage Bias (Gate) Voltage Bias (Gate) Current, Average RF Source & Load Impedance Load

Applications

* THE PERFORMANCE CHARACTERISTICS SHOULD BE VERIFIED BY CONTACTING XEMOD. Xemod QuikPAC Data QPP-029 www. xemod. com Rev. B (04-10-02) Page 1 of 3 Performance at 28VDC & 25ºC (continued) Parameter IMD Variation
* 100 kHz to 25 MHz tone spacing 2 Harmonic at 35W Pout(single tone) 3rd Harmon
