QY-12864 Datasheet - ETC

LCD Module

QY-12864 General Description

Power Supply ( VSS =0)  Power Supply ( VDD=5V±10%),   5.5V maximum(25°C)  Operating voltage   for LCD(variable)  H:Data    L:Instruction Code  Read / Write  Enable trigger  Data bus  Chip Select 1  Chip Select 2  Controller reset  Supply voltage for LCD Drive  (VDD‐VEE=15V Maximum)  Backlight anode.

QY-12864 Datasheet (246.97 KB)

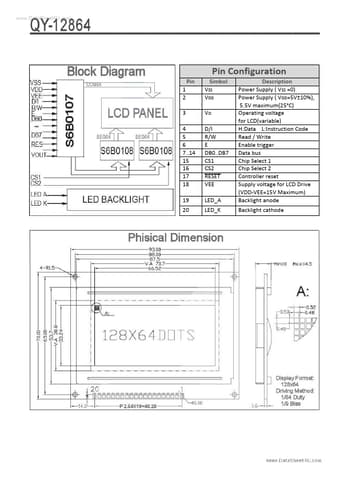

Preview of QY-12864 PDF

Datasheet Details

Part number:

QY-12864

Manufacturer:

ETC

File Size:

246.97 KB

Description:

Lcd module.
www.DataSheet4U.com     Pin Configuration Pin  1  2  3  4  5  6  7..14  15  16  17  18  19  20  Simbol  VSS  VDD  VO  D/I  R/W  E  DB0..DB7  CS1  CS.
