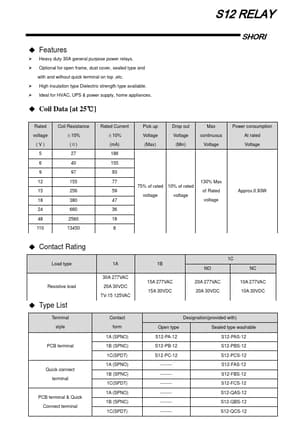

S12-QAS-12, S12-PAS-12 - RELAY

Datasheet Details

Part number	S12-QAS-12, S12-PAS-12
Manufacturer	ETC
File Size	501.46 KB
Description	RELAY
Datasheet	S12-PAS-12-ETC.pdf
Note	This datasheet PDF includes multiple part numbers: S12-QAS-12, S12-PAS-12. Please refer to the document for exact specifications by model.

s.
Heavy duty 30A general purpose power relays.
Optional for open frame, dust cover, sealed type and with and without quick terminal on top ,etc.
High insulation type Dielectric strength type available.
Ideal for HVAC, UPS & power supply, home appliances.
Coil Data [at 25℃] SHORI Rated voltage (V) 5 6 9 12 15 18 24 48 110 Coil Resistance ±10% (Ω) 27 40 97 155 256 380 660 2560 13450 Rated Current ±10% (mA) 186 155 93 77 59 47 36 18 8 Pick up Voltage (Max) Drop o.
