S9518

Nonvolatile DACPOT Electronic Potentiometer

S9518 Features

* Digitally Controlled Electronic Potentiometer

* 8-Bit Digital-to-Analog Converter (DAC)

* Independent Reference Inputs

* Differential Non-Linearity - ±0.5LSB max

* Integral Non-Linearity - ±1LSB max

* VOUT Value in EEPROM for Power-On Recall

* Equivale

S9518 General Description

PB Input, Moves VOUT Toward VH Input PB Input, Moves VOUT Toward VL Input Vref High Ground Trimmed Voltage Output Vref Low Store Input, Providing a Control Input to Initiate a Store Operation Supply Voltage (2.7V to 5.5V) 2017 PGM T1.0 PINOUT UP DWN VH GND 1 2 3 4 8 7 6 5 VDD STR VL VOUT 2017 I.

S9518 Datasheet (43.45 KB)

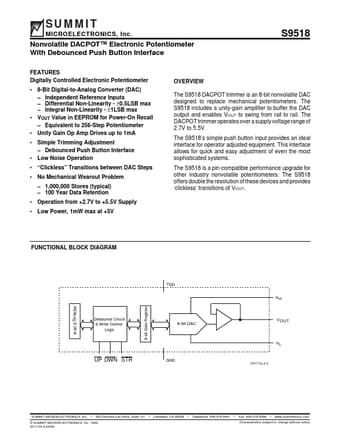

Preview of S9518 PDF

Datasheet Details

Part number:

S9518

Manufacturer:

ETC

File Size:

43.45 KB

Description:

Nonvolatile dacpot electronic potentiometer.
