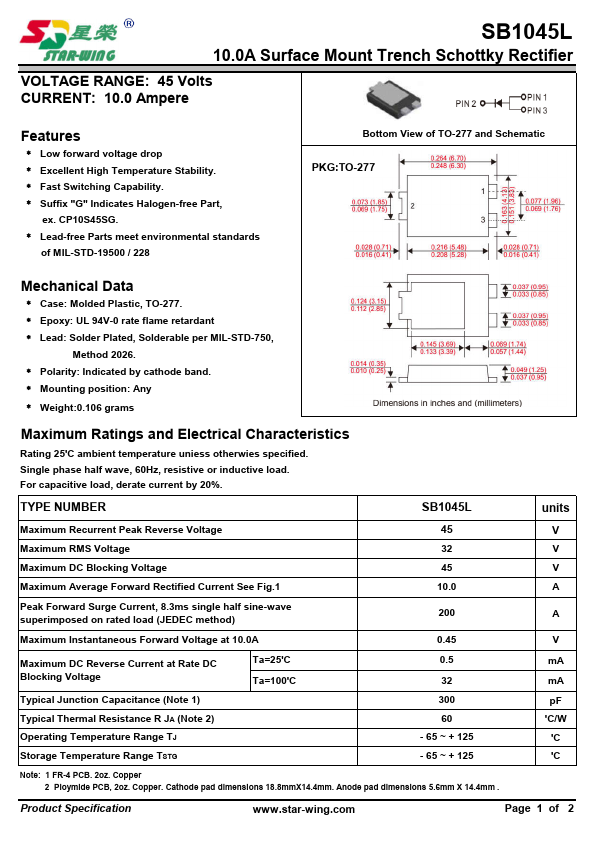

SB1045L - 10.0A Surface Mount Trench Schottky Rectifier

Datasheet Details

Part number	SB1045L
Manufacturer	ETC
File Size	219.65 KB
Description	10.0A Surface Mount Trench Schottky Rectifier
Datasheet	SB1045L-ETC.pdf

Low forward voltage drop.
Excellent High Temperature Stability.
Fast Switching Capability.
Suffix "G" Indicates Halogen-free Part, ex. CP10S45SG.
Lead-free Parts meet environmental standards of MIL-STD-19500 / 228 Bottom View of TO-277 and Schematic PKG:TO-277 Mechanical Data.
Case: Molded Plastic, TO-277.
Epoxy: UL 94V-0 rate flame retardant.
Lead: Solder Plated, Solderable per MIL-STD-750, Method 2026.
Polarity: Indicated by cathode band.
