SC-A1470 - CRYSTAL CLOCK OSCILLATORS

📥 Download Datasheet

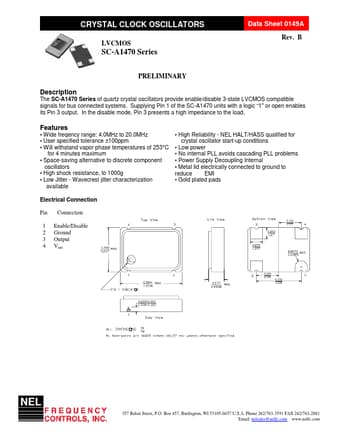

SC-A1470 Datasheet Preview — Preview of SC-A1470 PDF

datasheet Preview Page 2

Datasheet Details

Part number	SC-A1470
Manufacturer	ETC
File Size	168.29 KB
Description	CRYSTAL CLOCK OSCILLATORS
Datasheet	SC-A1470_ETC.pdf

SC-A1470 Product details

Description

The SC-A1470 Series of quartz crystal oscillators provide enable/disable 3-state LVCMOS compatible signals for bus connected systems.

Features

Wide freqency range: 4.0MHz to 20.0MHz.
User specified tolerance ±100ppm.
Will withstand vapor phase temperatures of 253°C for 4 minutes maximum.
Space-saving alternative to discrete component oscillators.
High shock resistance, to 1000g.
Low Jitter - Wavecrest jitter characterization available Electrical Connection Pin 1 2 3 4 Connection Enable/Disable Ground Output VDD.
High Reliability - NEL HALT/HASS qualified for crystal oscill.
