SQD200A60 TRANSISTOR MODULE

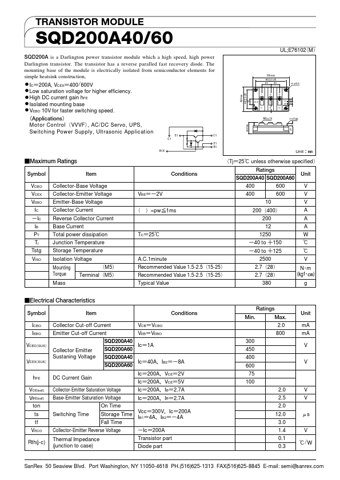

TRANSISTOR MODULE SQD200A40/60 UL;E76102 M SQD200A is a Darlington power transistor module which a high speed, high power Darlington transistor. The transistor has a reverse paralled fast recovery diode. The mounting base of the module is electrically isolated from semiconductor elements for simple heatsink construction, IC 200A, VCEX 400/600V Low saturation voltage for higher efficiency. High DC current gain hFE Isolated mounting base VEBO 10V for faster switching speed. Applications Motor Con.

SQD200A60 Datasheet (100.76 KB)
