SX01

(SX01 / SX05) Silicon Pressure Sensor

SX01 Features

* Low Cost

* High-Impedance Bridge

* Absolute and

* Differential (Gauge)

* Low Noise

* Low Power Consumption for Battery Power TYPICAL APPLICATIONS

* Medical

* Instrumentation www.DataSheet4U.com

* Barometric

* Measureme

SX01 General Description

The SX Series pressure sensors provide the lowest cost components for measuring pressures up to 150 psi. These sensors are designed for use with non-corrosive, non-ionic media, such as air and dry gases. Convenient pressure ranges are available to measure differential, gauge, and absolute pressures .

SX01 Datasheet (1.15 MB)

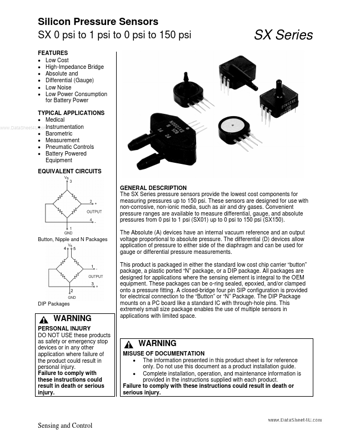

Preview of SX01 PDF

Datasheet Details

Part number:

SX01

Manufacturer:

ETC

File Size:

1.15 MB

Description:

(sx01 / sx05) silicon pressure sensor.
