TC3532 - 4.9 - 6 GHz 29dBm MMIC

Datasheet Summary

Description

The TC3532 is a 2 stage PHEMT MMIC power amplifier.

It is designed for use in low cost, high volume, 4.9~6 GHz band applications.

The MMIC is matched to 50Ω operation.

Features

  • P-1 dB: 29 dBm Small Signal Gain: 21 dB Power Added Efficiency: 25 % IP3: 39 dBm Match to 50 Ω operation Bias condition: 400 mA @ 8 V PHOTO.

📥 Download Datasheet

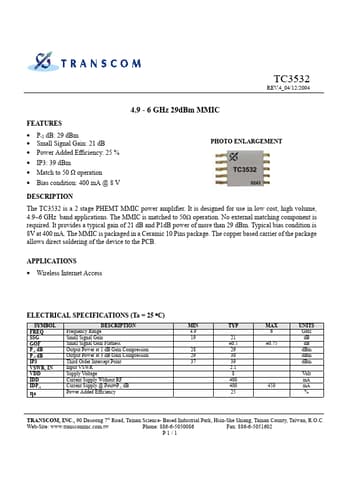

Datasheet preview – TC3532

Datasheet Details

Part number TC3532
Manufacturer ETC
File Size 151.94 KB
Description 4.9 - 6 GHz 29dBm MMIC
Datasheet download datasheet TC3532 Datasheet
Additional preview pages of the TC3532 datasheet.

📁 Similar Datasheet

  • TC35300BP - DTMF Receiver (Toshiba)
  • TC3500 - TIN CAN PRESS-FIT DIODE (WON-TOP)
  • TC3500H - SURFACE MOUNT THYRISTOR SURGE PROTECTIVE DEVICE (Lite-On Technology)
  • TC3500H - SURFACE MOUNT THYRISTOR SURGE PROTECTIVE DEVICE (Lite-On)
  • TC3501 - TIN CAN PRESS-FIT DIODE (WON-TOP)
  • TC3502 - TIN CAN PRESS-FIT DIODE (WON-TOP)
  • TC3503 - TIN CAN PRESS-FIT DIODE (WON-TOP)
  • TC3504 - TIN CAN PRESS-FIT DIODE (WON-TOP)
  • TC3505 - TIN CAN PRESS-FIT DIODE (WON-TOP)
  • TC3506 - TIN CAN PRESS-FIT DIODE (WON-TOP)
Other Datasheets by ETC
  • TC35083F - CMOS 10-Bit 2-Ch A/D Converter
  • TC3582 - Two lights Charger
  • TC303 - POWER NAND GATES
  • TC3097-8 - LITE END MULTIPORT REPEATER INTERFACE CONTROLLER
  • TC3097F-5 - LITE END MULTIPORT REPEATER INTERFACE CONTROLLER
  • TC3097F-8 - LITE END MULTIPORT REPEATER INTERFACE CONTROLLER - OCF

Full PDF Text Transcription

Click to expand full text
TC3532 REV.4_04/12/2004 4.9 - 6 GHz 29dBm MMIC FEATURES • • • • • • P-1 dB: 29 dBm Small Signal Gain: 21 dB Power Added Efficiency: 25 % IP3: 39 dBm Match to 50 Ω operation Bias condition: 400 mA @ 8 V PHOTO ENLARGEMENT DESCRIPTION The TC3532 is a 2 stage PHEMT MMIC power amplifier. It is designed for use in low cost, high volume, 4.9~6 GHz band applications. The MMIC is matched to 50Ω operation. No external matching component is required. It provides a typical gain of 21 dB and P1dB power of more than 29 dBm. Typical bias condition is 8V at 400 mA. The MMIC is packaged in a Ceramic 10 Pins package. The copper based carrier of the package allows direct soldering of the device to the PCB.
