Part number: TC8002
Manufacturer: ETC
File Size: 375.24KB
Download: 📄 Datasheet
Description: 2W Audio Power Amplifier

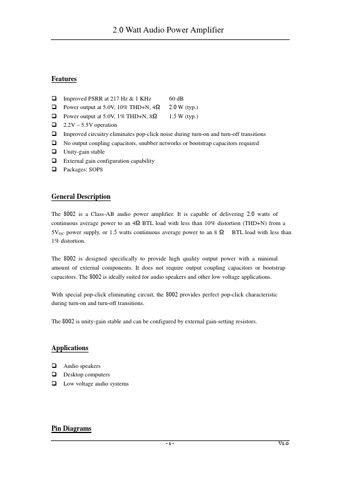

The 8002 is a Class-AB audio power amplifier. It is capable of delivering 2.0 watts of continuous average power to an 4Ω BTL load with less than 10% distortion (THD+N) from a 5VDC power supply, or 1.5 watts continuous average power to an 8 Ω BTL load.
Improved PSRR at 217 Hz & 1 KHz
60 dB
Power output at 5.0V, 10% THD+N, 4Ω 2.0 W (typ.)
Power output at 5.0V, 1% THD+N, 8Ω 1.5 W (typ.)
2.2V
– 5.5V op.
With special pop-click eliminating circuit, the 8002 provides perfect pop-click characteristic during turn-on and turn-.
