TIL321A 7-Segment RED LED Display

TIL321A 7-SEGMENT RED LED DISPLAY ABSOLUTE MAXIMUM RATINGS: Reverse voltage at 25 oC = 5 V Peak forward current at 25oC = 150 mA per segment Average forward current at 25 oC = 25 mA per segment Operating free-air temperature = -40 oC to 85oC Lead temperature 1.6 mm below seating plane for 5 seconds = 250 oC OPERATING CHARACTERISTICS: Luminous intensity at 10 mA per segment = 125 µcd Wavelength at peak emission = 655 nm

TIL321A Datasheet (10.80 KB)

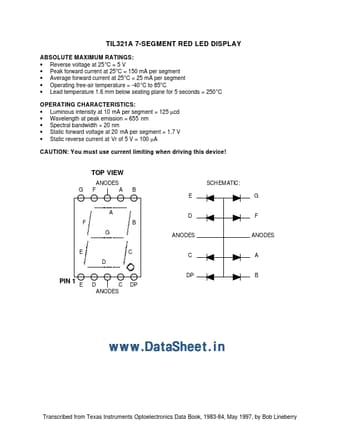

TIL321A Datasheet Preview — Preview of TIL321A PDF

Datasheet Details

Part number:

TIL321A

Manufacturer:

ETC

File Size:

10.80 KB

Description:

7-segment red led display.
