TMS94481CT (TMS9xxxxCT) Transformer

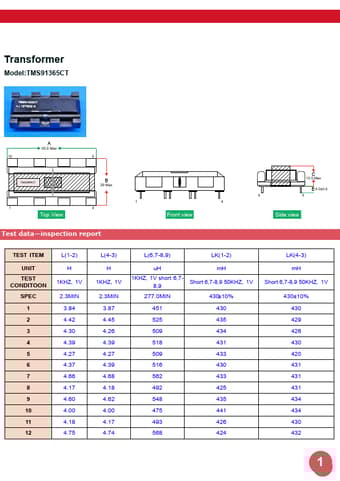

Transformer Model:TMS91365CT 55.5 Max 10 5 A TMS####CT 29 Max 4 1 4 5 B 13.0 Max C E 4.0±0.5 1 4 Top View Front view Side view Test data inspection report http://www.DataSheet4U.net/ TEST ITEM UNIT TEST CONDITOON SPEC 1 2 3 4 5 6 7 8 9 10 11 12 L(1-2) H 1KHZ, 1V 2.3MIN 3.84 4.42 4.30 4.39 4.27 4.37 4.66 4.17 4.60 4.00 4.18 4.75 L(4-3) H 1KHZ, 1V 2.3MIN 3.87 4.45 4.26 4.39 4.27 4.39 4.68 4.18 4.62 4.00 4.17 4.74 L(6,7-8,9) uH 1KHZ, 1V short 6,78,9 277.0MIN 451 525 509 51.
