TS12864A-2

LCD Module

TS12864A-2 Features

* Module: graphic LCD arranged as 128 x 64 dots with LED Back-light

* (Yellow/Green)

* Glass Type: STN

* Viewing Direction : 6 ‘clock (bottom view)

* Display color: Green

* Background color: Yellow

* Polarizer mode: Positive, Reflective/Transflective

TS12864A-2 General Description

93.0 x 70.0 x 1.6 84.0 x 51.0 x 2.6 70.6 x38.6 93 x 70.0 x8.0/13.5
* Unit mm mm mm mm TS-12864A-2 LCD Module Specification Ver1.0 Total 6 pages 2 www.DataSheet4U.com

*PIN ASSIGNMENT Pin NO. 1 2 3 4 5 6 7-14 15 16 17 18 19 20 Symbol VSS VDD VO D/I R/W E DB0-DB7 CSA CSB /RES VEE LED(.

TS12864A-2 Datasheet (94.57 KB)

Preview of TS12864A-2 PDF

Datasheet Details

Part number:

TS12864A-2

Manufacturer:

ETC

File Size:

94.57 KB

Description:

Lcd module.

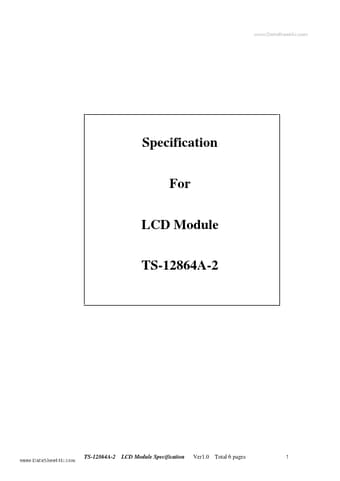

www.DataSheet4U.com Specification For LCD Module TS-12864A-2 TS-12864A-2 LCD Module Specification Ver1.0 Total 6 pages 1 www.DataSheet4U.com T.
