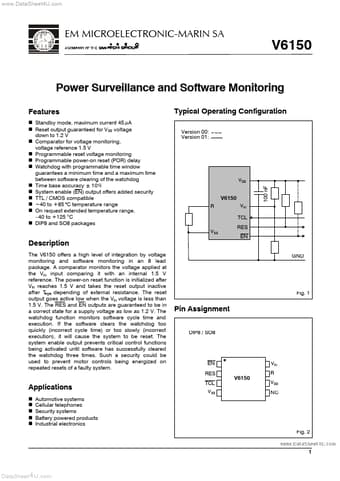

V6150
Features n Standby mode, maximum current 45 m A n Reset output guaranteed for V DD voltage down to 1.2 V n parator for voltage monitoring, voltage reference 1.5 V n Programmable reset voltage monitoring n Programmable power-on reset (POR) delay n Watchdog with programmable time window guarantees a minimum time and a maximum time between software clearing of the watchdog n Time base accuracy ± 10% n System enable (EN) output offers added security n TTL / CMOS patible n -40 to +85 °C temperature range n On request extended temperature range,
- 40 to +125 ° C n DIP8 and SO8 packages
Typical Operating Configuration
Version 00: Version 01:
VDD V6150 R VIN TCL VSS RES EN GND 100 n F
Description
The V6150 offers a high level of integration by voltage monitoring and software monitoring in an 8 lead package. A parator monitors the voltage applied at the VIN input paring it with an internal 1.5 V reference. The power-on reset function is initialized after VIN reaches 1.5 V and takes the reset...
