V6309 - 3-Pin Microprocessor Reset Circuit

Description

The V6309 and V6319 are microprocessor supervisory circuits used to monitor the power supplies in µP and digital systems.

They provide excellent circuit reliability and low cost by eliminating external components and adjustments when used with 5 V powered or 3 V powered circuits.

Features

  • n Precision monitoring of 3 V, 3.3 V and 5 V power n Fully specified over the temperature range of n 140 ms minimum power-on reset pulse width: Typical Operating Configuration supply voltages -40 to + 125 oC n n n n n n RESET output for V6309 RESET output for V6319 16 µA supply current Garanteed RESET/RESET valid to VDD = 1 V Power supply transient immunity No external components needed 3-pin SOT-23 package Fully compatible with MAX809/MAX810 and AMD809/AMD810.

📥 Download Datasheet

Datasheet preview – V6309

Datasheet Details

Part number V6309
Manufacturer ETC
File Size 246.75 KB
Description 3-Pin Microprocessor Reset Circuit

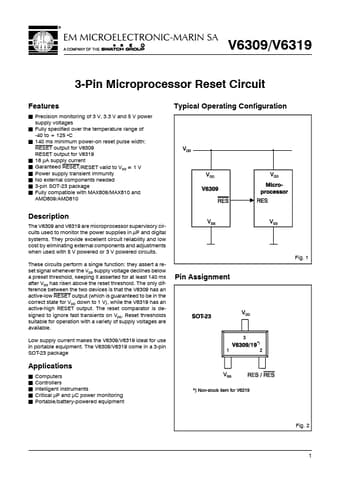

Datasheet download datasheet V6309 Datasheet
Additional preview pages of the V6309 datasheet.

📁 Similar Datasheet

  • V6300 - (V6300 / V6301) Ultra Low Power 3-Pin Power-On Reset IC (EM Microelectronic)
  • V6301 - (V6300 / V6301) Ultra Low Power 3-Pin Power-On Reset IC (EM Microelectronic)
  • V630ME01 - OSCILLATOR (Z-Communications)
  • V630ME02 - OSCILLATOR (Z-Communications)
  • V630ME03-LF - Voltage-Controlled Oscillator (Z-Communications)
  • V630ME04 - OSCILLATOR (Z-Communications)
  • V630ME04-LF - OSCILLATOR (Z-Communications)
  • V630ME05 - OSCILLATOR (Z-Communications)
  • V630ME05-LF - OSCILLATOR (Z-Communications)
  • V630ME08 - OSCILLATOR (Z-Communications)
Other Datasheets by ETC
  • V6301 - Ultra Low Power 3-Pin Voltage Surveillance with Time-out
  • V6319 - 3-Pin Microprocessor Reset Circuit
  • V6340 - Ultra Low Cost 3-Pin Microprocessor Reset
  • V6340P - Ultra Low Cost 3-Pin Microprocessor Reset
  • V637MC02 - VOLTAGE CONTROLLED OSCILLATOR

Full PDF Text Transcription

Click to expand full text
® EM MICROELECTRONIC-MARIN SA V6309/V6319 3-Pin Microprocessor Reset Circuit Features n Precision monitoring of 3 V, 3.3 V and 5 V power n Fully specified over the temperature range of n 140 ms minimum power-on reset pulse width: Typical Operating Configuration supply voltages -40 to + 125 oC n n n n n n RESET output for V6309 RESET output for V6319 16 µA supply current Garanteed RESET/RESET valid to VDD = 1 V Power supply transient immunity No external components needed 3-pin SOT-23 package Fully compatible with MAX809/MAX810 and AMD809/AMD810 Description The V6309 and V6319 are microprocessor supervisory circuits used to monitor the power supplies in µP and digital systems.
