V6319 Datasheet - ETC

3-Pin Microprocessor Reset Circuit

V6319 Features

* n Precision monitoring of 3 V, 3.3 V and 5 V power n Fully specified over the temperature range of n 140 ms minimum power-on reset pulse width: Typical Operating Configuration supply voltages -40 to + 125 oC n n n n n n RESET output for V6309 RESET output for V6319 16 µA supply current Garanteed

V6319 General Description

The V6309 and V6319 are microprocessor supervisory circuits used to monitor the power supplies in µP and digital systems. They provide excellent circuit reliability and low cost by eliminating external components and adjustments when used with 5 V powered or 3 V powered circuits. These circuits perf.

V6319 Datasheet (246.75 KB)

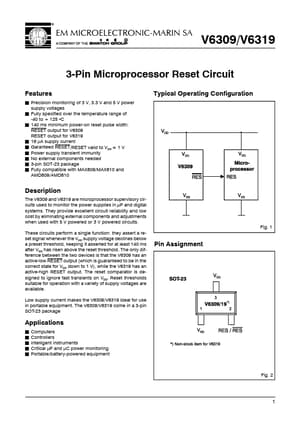

V6319 Datasheet Preview — Preview of V6319 PDF

Datasheet Details

Part number:

V6319

Manufacturer:

ETC

File Size:

246.75 KB

Description:

3-pin microprocessor reset circuit.
