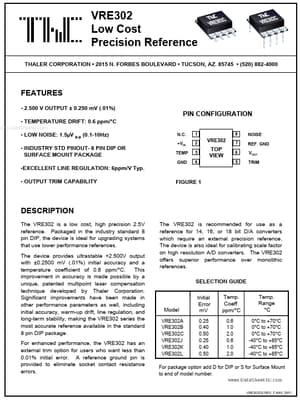

VRE302 Low Cost Precision Reference

The VRE302 is a low cost, high precision 2.5V reference. Packaged in the industry standard 8 pin DIP, the device is ideal for upgrading systems that use lower performance references. The device provides ultrastable +2.500V output with ±0.2500 mV (.01%) initial accuracy and a temperature coefficient .

VRE302 Features

* 2.500 V OUTPUT ± 0.250 mV (.01%)

* TEMPERATURE DRIFT: 0.6 ppm/°C www.DataSheet4U.com PIN CONFIGURATION N.C. +VIN TEMP GND 1 2 3 4 8 NOISE REF. GND VOUT TRIM

* LOW NOISE: 1.5µV p-p (0.1-10Hz)

* INDUSTRY STD PINOUT- 8 PIN DIP OR SURFACE MOUNT PACKAGE

* EXCELL
