VV5300 Integrated CMOS Image Sensor

VV5300 is a highly-integrated CMOS image sensing device. In addition to a 160 x 120 pixel image sensor array, the device includes on-chip circuitry to drive and sense the array. The primary image size is 160 x 120 but border pixels/lines can be enabled to give an effective image size of 164 x 124. .

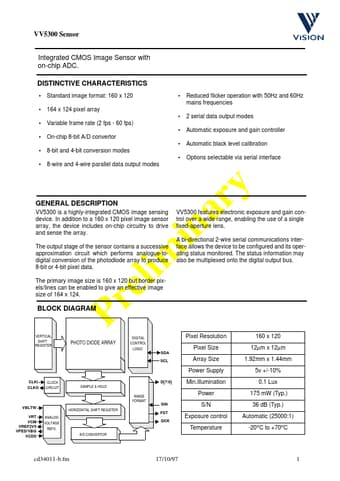

VV5300 Sensor Integrated CMOS Image Sensor with on-chip ADC. DISTINCTIVE CHARACTERISTICS Standard image format: 160 x 120 164 x 124 pixel array Variable frame rate (2 fps - 60 fps) On-chip 8-bit A/D convertor 8-bit and 4-bit conversion modes 8-wire and 4-wire parallel data output modes Options selectable via serial interface Automatic black level calibration Automatic exposure and gain controller .

VV5300 Features

* electronic exposure and gain control over a wide range, enabling the use of a single fixed-aperture lens. A bi-directional 2-wire serial communications interface allows the device to be configured and its operating status monitored. The status information may also be multiplexed onto the digital out
