W97ACSX-x (W97xxxx-x) Class 97 Power Relay

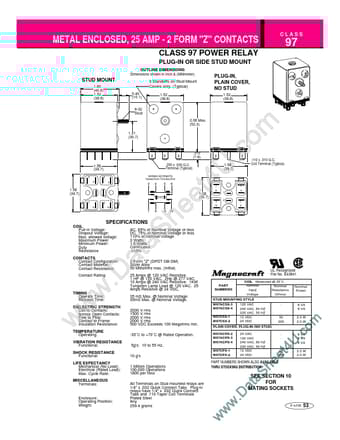

METAL ENCLOSED, 25 AMP - 2 FORM "Z" CONTACTS CLASS 97 POWER RELAY PLUG-IN OR SIDE STUD MOUNT OUTLINE DIMENSIONS Dimensions shown in Inch & (Millimeter) CLASS 97 STUD MOUNT 1.60 (40.6) 1.52 (38.6) 0.40 (10.1) 8-32 Stud 3 Standoffs on Stud Mount Covers only. (Typical) 1.52 (38.6) PLUG-IN, PLAIN COVER, NO STUD 1.52 (38.6) 2.06 Max. (52.3) 1.21 (30.7) .310 (7.8) 1.56 (39.7) 3 4 5 6 .250 x .030 Q.C. Terminal (Typical) WIRING SCHEMATIC Viewed from Terminal End 3 4 5 6 1.56 (39.7) 1 7 8 2 .
