YG225D2
ETC
57.96 KB
Fast recovery diode.

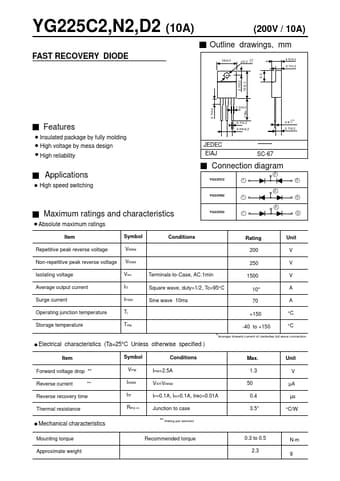

YG225C2,N2,D2 (10A)
FAST RECOVERY DIODE
10±0.5 ø3.2
+0.2 -0.1
(200V / 10A)
Outline drawings, mm
4.5±0.2 2.7±0.2
6.3 2.7±0.2 3.7±0.2
1.2±0.2
13Min
1.
* Insulated package by fully molding High voltage by mesa design High reliability JEDEC EIAJ 0.7±0.2 2.54±0.2 0.6 -0 +0.2 2.7±0.2 SC-67 Connection diagram Applications High speed switching 2 YG225N2 1 2 3 2 YG225C2 1 3 Maximum ratings and characteristics Absolute maximum ratings Item Repetitive
