ZR36050

JPEG IMAGE COMPRESSION PROCESSOR

ZR36050 Features

* s Implements JPEG Baseline image compression and expansion, including: - DCT/IDCT operations - Quantization - Variable length coding/decoding s Full support of the JPEG Baseline standard, including: - Bit and byte stuffing - JPEG markers including restart (RST), application (APP), and comment (COM) s

ZR36050 General Description

The ZR36050 is a high-speed JPEG Image Compression Processor that performs the algorithm specified by the JPEG Baseline and JPEG Lossless standards for high-quality image compression and expansion of continuous-tone color or monochrome images. The ZR36050 performs Discrete Cosine Transform (DCT), qu.

ZR36050 Datasheet (262.88 KB)

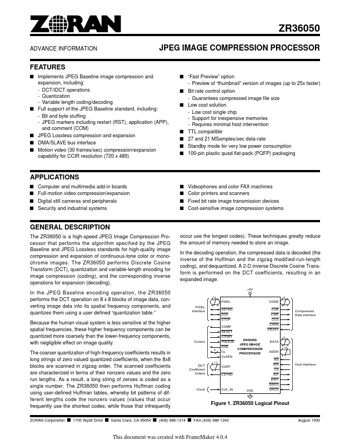

Preview of ZR36050 PDF

Datasheet Details

Part number:

ZR36050

Manufacturer:

ETC

File Size:

262.88 KB

Description:

Jpeg image compression processor.
