ET7808

3-Teminal Regulators

ET7808 Features

* of these regulators make them essentially immune to overload. Absolute maximum ratings over operating temperature range (unless otherwise noted) ET78-40 35 2 15 0 to 150 -65 to 150 260 UNIT V W Input voltage ET7824, ET7827 All others Continuous total dissipation at 25 free-air temperature Continu

ET7808 General Description

www.DataSheet4U.com This series of fixed-voltage monolithic integrated-circuit voltage regulators designed for a wide range of applications. These applications include on-card regulation for elimination of noise and distribution problems associated with single-point regulation. Each of these regula.

ET7808 Datasheet (101.52 KB)

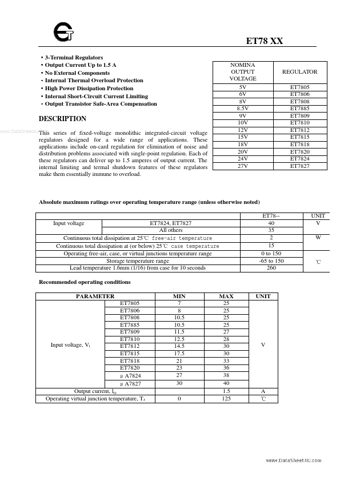

Preview of ET7808 PDF

Datasheet Details

Part number:

ET7808

Manufacturer:

ETIC

File Size:

101.52 KB

Description:

3-teminal regulators.
ET78 XX 3-Terminal Regulators Output Current Up to 1.5 A No External Components Internal Thermal Overload Protection High Power Dissipation Protection.
