235DL1LP11000 Datasheet - ETRI

235DL1LP11000 DC Axial Fans

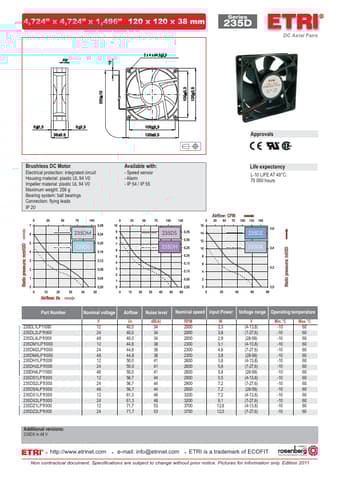

4,724’’ x 4,724” x 1,496’’ 120 x 120 x 38 mm 235D DC Axial Fans Series Approvals R R Brushless DC Motor Electrical protection: integrated circuit Housing material: plastic UL 94 V0 Impeller material: plastic UL 94 V0 Maximum weight: 256 g Bearing system: ball bearings Connection: flying leads IP 20 Available with: - Speed sensor - Alarm - IP 54 / IP 55 Life expectancy L-10 LIFE AT 40°C: 70 000 hours Airflow: CFM 235DM Static pressure: mmH2O 235DS 235DH 235DZ Static pressure: InH2O Min..

235DL1LP11000-ETRI.pdf

235DL1LP11000 Datasheet Preview — Preview of 235DL1LP11000 PDF

Datasheet Details

Part number:

235DL1LP11000

Manufacturer:

ETRI

File Size:

281.49 KB

Description:

Dc axial fans.
