KBPC1005 - 10A Single-Phase Silicon Bridge Rectifier

KBPC1005 Description

KBPC1005-KBPC1010 KBPC1005 thru KBPC1010 10 A Single-Phase Silicon Bridge Rectifier Rectifier Reverse Voltage 50 to 1000V .

KBPC1005 Features

* 3.8 + 0.2 DIA 12.7 Typical This series is UL listed under the Recognized Component Index, file number E142814 High temperature metallurgically bonded internal rectifiers Typical IR less than .1 A The plastic material used carries Underwriters Laboratory flammability recognition 94V-0 High tempera

📥 Download Datasheet

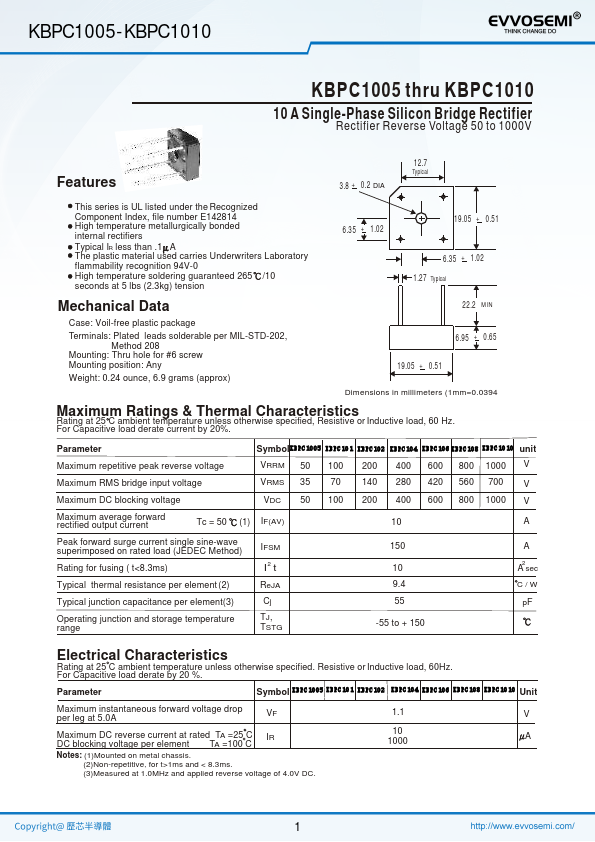

Preview of KBPC1005 PDF

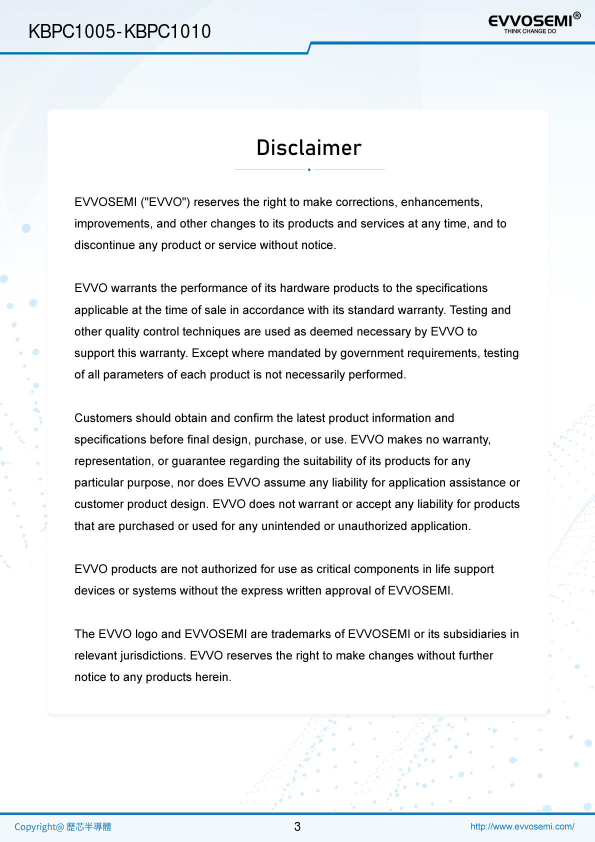

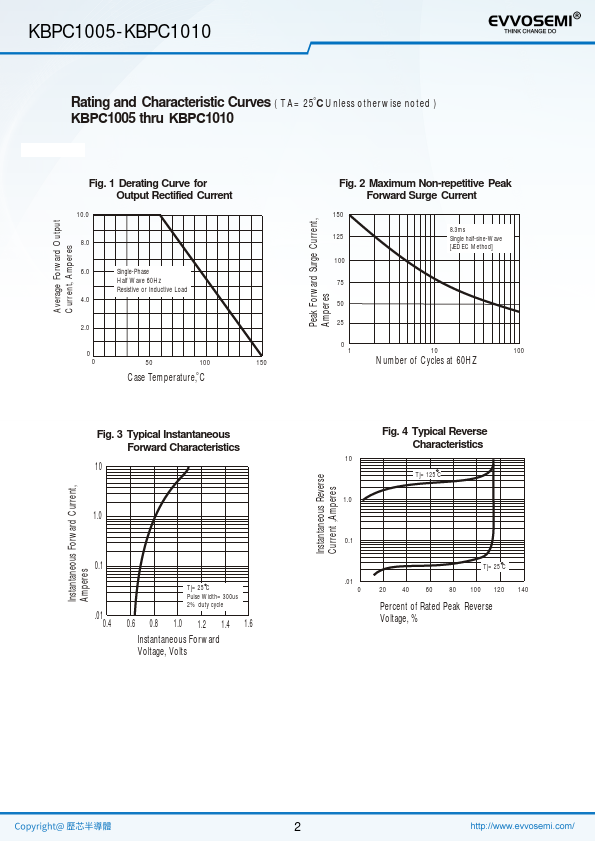

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
KBPC1005
Manufacturer
EVVO
File Size
439.49 KB
Datasheet
KBPC1005-EVVO.pdf
Description
10A Single-Phase Silicon Bridge Rectifier
