1N4448W - Fast Switching Diode

Datasheet Summary

Description

1 Cathode 2 Anode 2 1 Simplified outline SOD-123W and symbol Absolute Maximum Ratings at 25 °C Parameter Non-Repetitive Peak Reverse Voltage Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Reverse Voltage RMS Reverse Voltage Forward Continuous Current Average Rectified Output C

Features

  • For surface mounted.

📥 Download Datasheet

Datasheet preview – 1N4448W

Datasheet Details

Part number 1N4448W
Manufacturer EVVOSEMI
File Size 405.01 KB
Description Fast Switching Diode
Datasheet download datasheet 1N4448W Datasheet

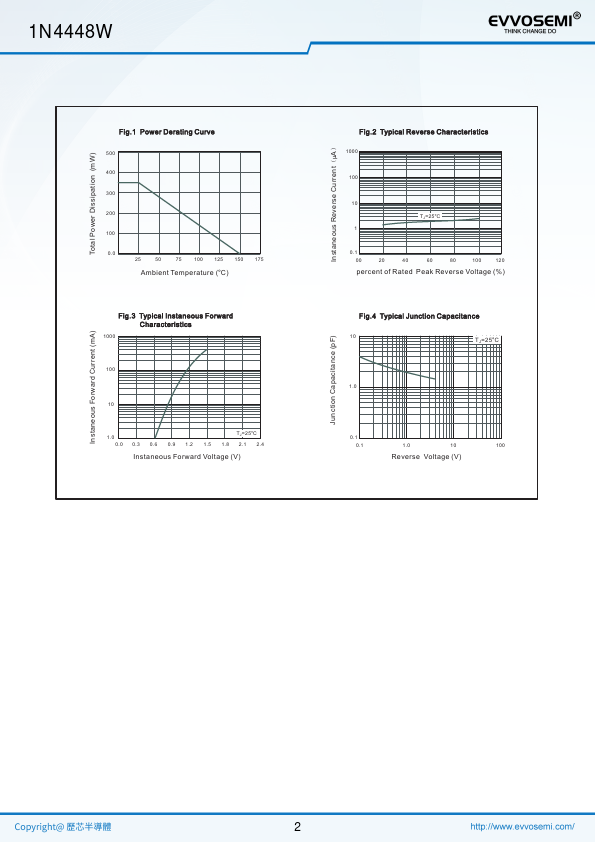

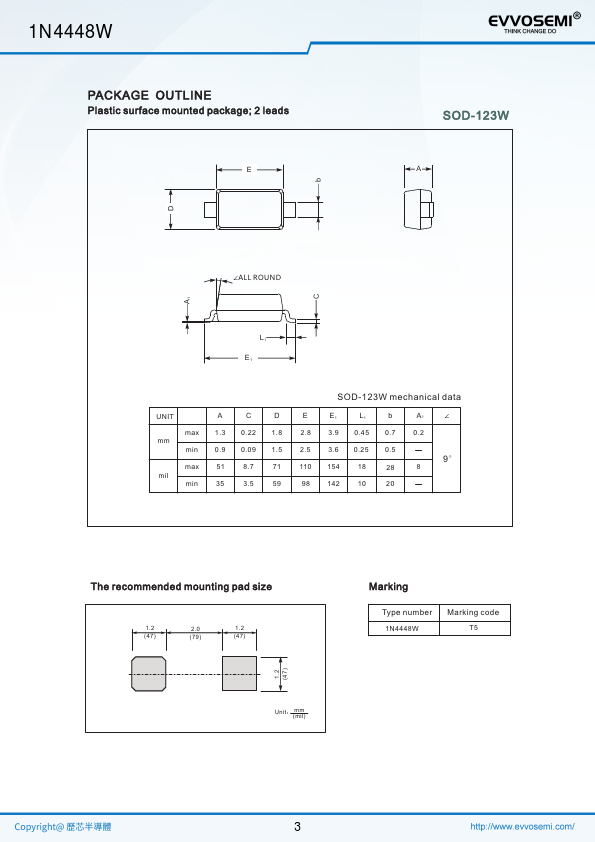

Additional preview pages of the 1N4448W datasheet.

📁 Similar Datasheet

  • 1N4448W - Switching Diodes (Kexin)
  • 1N4448W - FAST SWITCHING SURFACE-MOUNT DIODE (DIODES)
  • 1N4448W - FAST SWITCHING DIODE (SMC Diode)
  • 1N4448W - SURFACE MOUNT FAST SWITCHING DIODE (Sunmate)
  • 1N4448W - Small Signal Fast Switching Diode (Vishay)
  • 1N4448W - 150mA SWITCHING DIODE (AiT Semiconductor)
  • 1N4448W - 400mW High Speed SMD Switching Diode (Taiwan Semiconductor)
  • 1N4448W - SURFACE MOUNT SWITCHING DIODES (PAN JIT)
  • 1N4448W - SMALL SIGNAL DIODE (Rectron)
  • 1N4448W-G - Small Signal Fast Switching Diode (Vishay)
Other Datasheets by EVVOSEMI

    Full PDF Text Transcription

    Click to expand full text

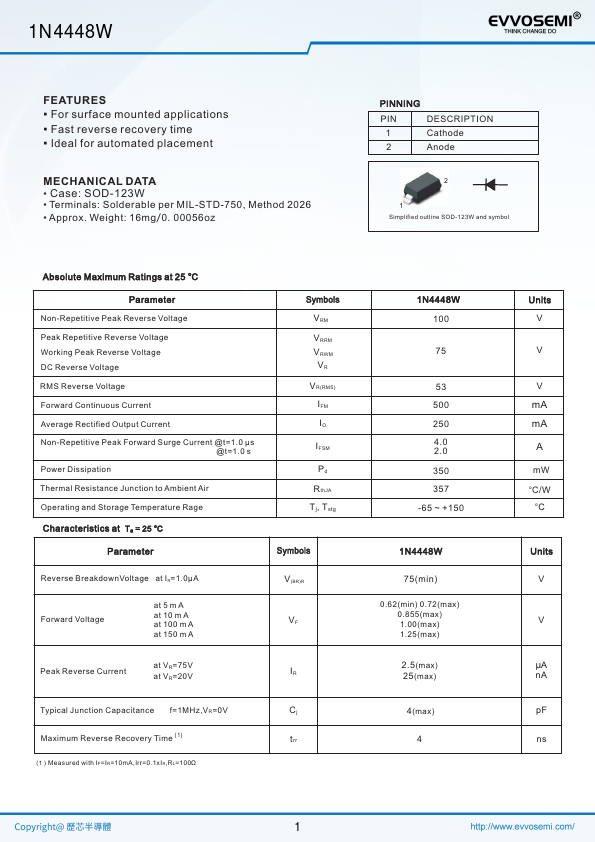

    1N4448W FEATURES ▪ For surface mounted applications ▪ Fast reverse recovery time ▪ Ideal for automated placement MECHANICAL DATA • Case: SOD-123W • Terminals: Solderable per MIL-STD-750, Method 2026 • Approx. Weight: 16mg/0.00056oz PINNING PIN DESCRIPTION 1 Cathode 2 Anode 2 1 Simplified outline SOD-123W and symbol Absolute Maximum Ratings at 25 °C Parameter Non-Repetitive Peak Reverse Voltage Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Reverse Voltage RMS Reverse Voltage Forward Continuous Current Average Rectified Output Current Non-Repetitive Peak Forward Surge Current @t=1.0 μs @t=1.
