ECW20N20 Datasheet - EXICON

ECW20N20 N-CHANNEL LATERAL MOSFET

ECW20N20 N CHANNEL LATERAL MOSFET N Channel Lateral Mosfet Designed speci cally for linear audio ampli er applications High-speed for high bandwidth ampli ers High voltage rating - 200V TO-264 plastic package Enhanced oscillation suppression in multi-device applications Complementary P-channel available ECW20P20 ABSOLUTE MAXIMUM RATINGS (TC= 25°C unless otherwise stated) VDSS Drain Source Voltage 200V VGSS Gate Source Voltage +/-20V ID Continuous Drain Curre.

ECW20N20 Datasheet (317.46 KB)

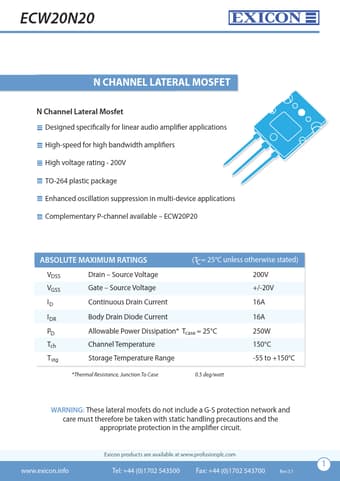

Preview of ECW20N20 PDF
ECW20N20 Datasheet Preview Page 2 ECW20N20 Datasheet Preview Page 3

Datasheet Details

Part number:

ECW20N20

Manufacturer:

EXICON

File Size:

317.46 KB

Description:

N-channel lateral mosfet.
