EZ47-Cu-TP - Cable

Product Overview

📥 Download Datasheet

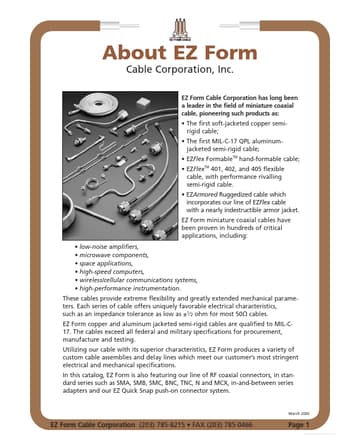

EZ47-Cu-TP Cable by EZ Form Cable - Datasheet Preview — Datasheet preview – EZ47-Cu-TP

Datasheet Details

Part number	EZ47-Cu-TP
Manufacturer	EZ Form Cable
File Size	747.80 KB
Description	Cable
Datasheet	EZ47-Cu-TP Datasheet
Note	This datasheet PDF includes multiple part numbers: EZ47-Cu-TP, EZ47M17. Please refer to the document for exact specifications by model.
Additional preview pages of the EZ47-Cu-TP datasheet.

Product details

Features

Two series of solid-jacketed semi-rigid (copper and aluminum), and two series of hand-formable cables: EZFlexTM (ﬂexible) and EZFlex FormableTM (featuring a tinned braid outer conductor for 100% shielding).
a type to suit virtually every high-frequency requirement.
Minimum VSWR.
Impedance tolerances as low as ±1⁄ 2Ω.
Smooth attenuation vs. frequency curve.
Easily formed; EZFlex cable withstands repeated ﬂexing better than standard semi-r.
