ER-OLEDM1602-4 Datasheet - EastRising

ER-OLEDM1602-4 OLED Display

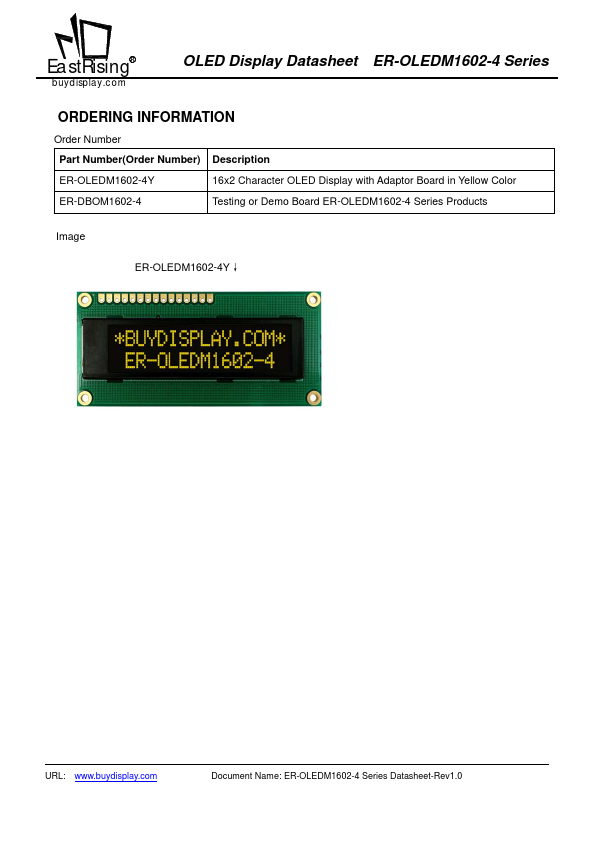

9B4 Preliminary Release 12B7 RELEASE DATE 10B5 Jul-11-2011 13B8 URL: www.buydisplay.com Document Name: ER-OLEDM1602-4 Series Datasheet-Rev1.0 EastRisingR buydisplay.com OLED Display Datasheet ER-OLEDM1602-4 Series ORDERING INFORMATION 54B197 Order Number Part Number(Order Number) Description .

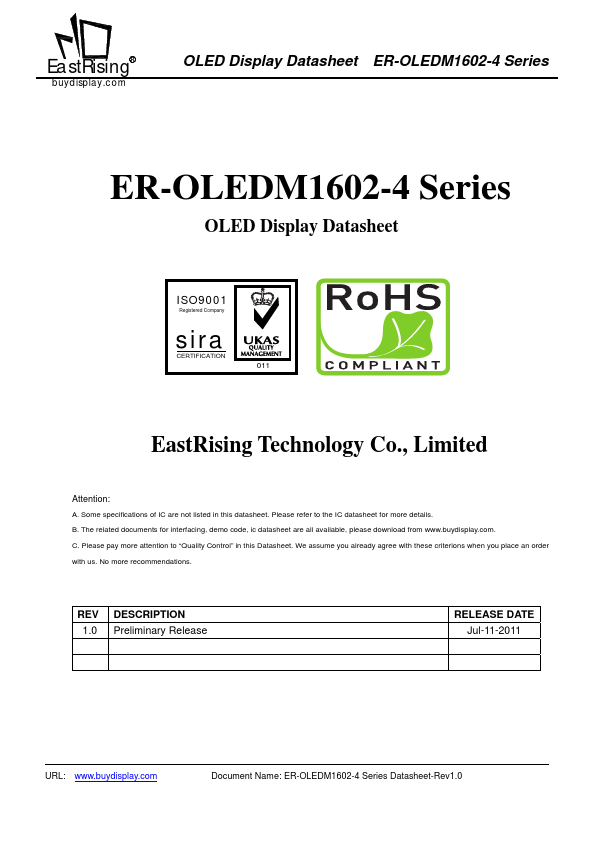

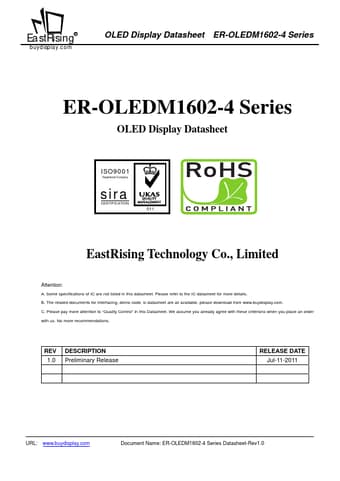

EastRisingR buydisplay.com OLED Display Datasheet ER-OLEDM1602-4 Series 0B ER-OLEDM1602-4 Series 1B OLED Display Datasheet 2B ISO9001 Registered Company sira CERTIFICATION 011 3B EastRising Technology Co., Limited Attention: 4B A. Some specifications of IC are not listed in this datasheet. Please refer to the IC datasheet for more details. B. The related documents for interfacing, demo code, ic datasheet are all available, please download from www.buydisplay.com. C. Please pay more attentio.

ER-OLEDM1602-4 Features

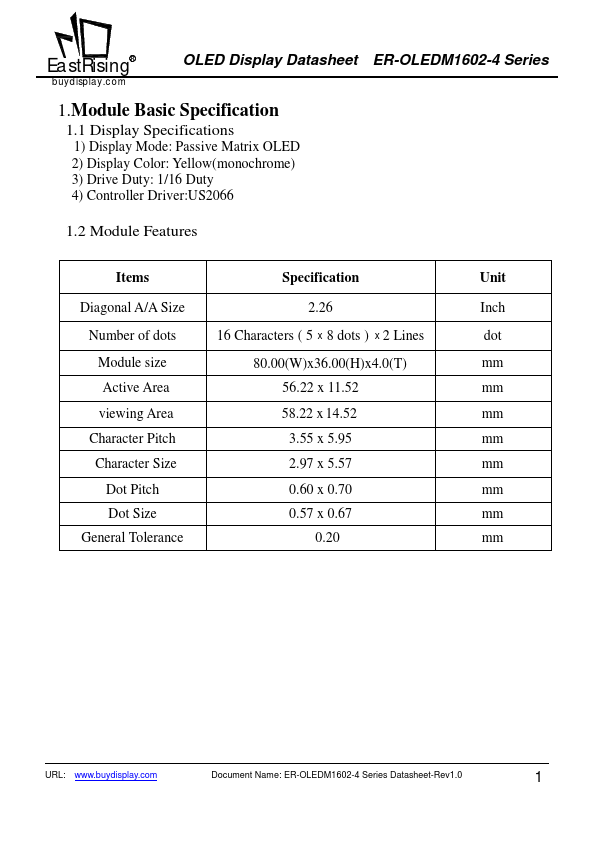

* Items Specification Unit Diagonal A/A Size 2.26 Inch Number of dots 16 Characters ( 5 x 8 dots ) x 2 Lines dot Module size 80.00(W)x36.00(H)x4.0(T) mm Active Area 56.22 x 11.52 mm viewing Area 58.22 x 14.52 mm Character Pitch 3.55 x 5.95 mm Character Size 2.97 x 5.57 mm Dot

ER-OLEDM1602-4 Datasheet (1.30 MB)
