SD10-101-R - Low profile metalized shielded drum core power inductors
This page provides the datasheet information for the SD10-101-R, a member of the SD10-R47-R Low profile metalized shielded drum core power inductors family.
Datasheet Summary
Features
Six sizes of shielded drum core inductors
with low profiles (as low as 1.0mm) and high power density.
Inductance range from .47 uH to 1000 uH.
Current range from 0.88 A to 6.0 A.
Ferrite shielded, low EMI.
Ferrite core material
Environmental data.
Storage temperature range (component):
-40 °C to +125 °C.
Operating temperature range: -40 °C to +125 °C
(ambient plus self-temperature rise).
SD10-100-R- Low profile metalized shielded drum core power inductors
SD10-150-R- Low profile metalized shielded drum core power inductors
SD10-151-R- Low profile metalized shielded drum core power inductors
SD10-1R0-R- Low profile metalized shielded drum core power inductors
SD10-1R5-R- Low profile metalized shielded drum core power inductors
SD10-220-R- Low profile metalized shielded drum core power inductors
SD10-221-R- Low profile metalized shielded drum core power inductors
SD10-2R2-R- Low profile metalized shielded drum core power inductors
Full PDF Text Transcription
Click to expand full text

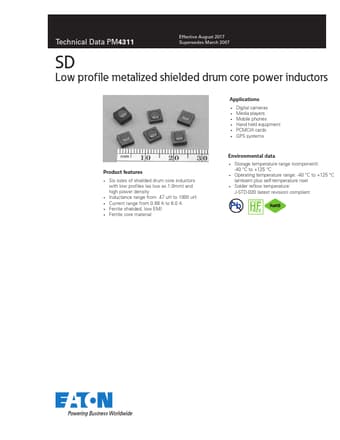

Technical Data PM4311
Effective August 2017 Supersedes March 2007
SD
Low profile metalized shielded drum core power inductors
Applications • Digital cameras • Media players • Mobile phones • Hand held equipment • PCMCIA cards • GPS systems
Product features • Six sizes of shielded drum core inductors
with low profiles (as low as 1.0mm) and high power density • Inductance range from .47 uH to 1000 uH • Current range from 0.88 A to 6.
SD10-101-R Datasheet
