SD18-100-R Datasheet - Eaton

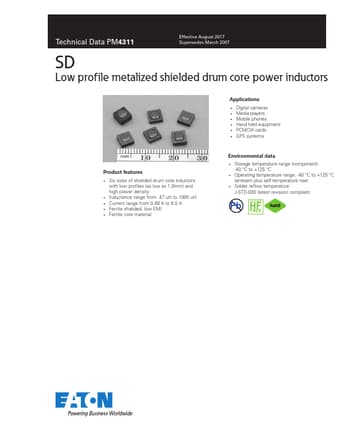

SD18-100-R Low profile metalized shielded drum core power inductors

SD18-100-R Features

* Six sizes of shielded drum core inductors with low profiles (as low as 1.0mm) and high power density

* Inductance range from .47 uH to 1000 uH

* Current range from 0.88 A to 6.0 A

* Ferrite shielded, low EMI

* Ferrite core material Environmental data

Datasheet Details

SD18-100-R

Eaton

577.42 KB

Low profile metalized shielded drum core power inductors.
