SD20-100-R Datasheet, Inductors, Eaton

SD20-100-R Features

• Inductors
• Six sizes of shielded drum core inductors with low profiles (as low as 1.0mm) and high power density
• Inductance range from .47 uH to 1000 uH
• Current range

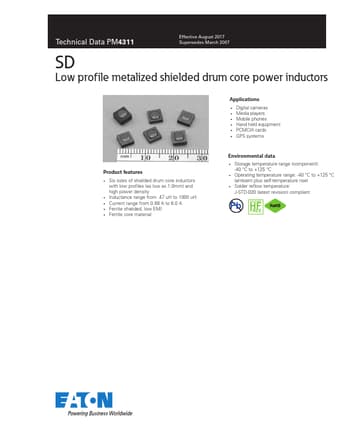

PDF File Details

Part number:

SD20-100-R

Manufacturer:

Eaton

File Size:

534.98kb

Download:

📄 Datasheet

Description:

Low profile metalized shielded drum core power inductors.

SD20-100-R Application

• Applications
• Digital cameras
• Media players
• Mobile phones
• Hand held equipment
• PCMCIA cards
