SD20-102-R

Low profile metalized shielded drum core power inductors

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Eaton Bussmann SD20-102-R FIXED IND 1MH 172MA 8.73 OHM SMD DigiKey 0 2900 units
$1.16

SD20-102-R Datasheet (534.98 KB)

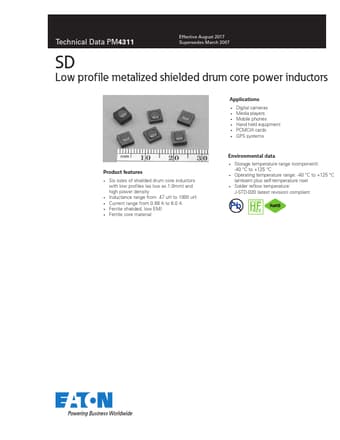

Preview of SD20-102-R PDF Datasheet

Datasheet Details

Part number:

SD20-102-R

Manufacturer:

Eaton

File Size:

534.98 KB

Description:

Low profile metalized shielded drum core power inductors

SD20-102-R Features

* Six sizes of shielded drum core inductors with low profiles (as low as 1.0mm) and high power density

* Inductance range from .47 uH to 1000 uH

* Current range from 0.88 A to 6.0 A

* Ferrite shielded, low EMI

* Ferrite core material Environmental data
