SD25-151-R

Low profile metalized shielded drum core power inductors

SD25-151-R Features

* Six sizes of shielded drum core inductors with low profiles (as low as 1.0mm) and high power density

* Inductance range from .47 uH to 1000 uH

* Current range from 0.88 A to 6.0 A

* Ferrite shielded, low EMI

* Ferrite core material Environmental data

SD25-151-R Datasheet (534.98 KB)

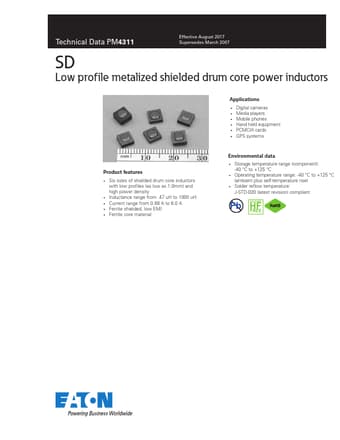

Preview of SD25-151-R PDF

Datasheet Details

Part number:

SD25-151-R

Manufacturer:

Eaton

File Size:

534.98 KB

Description:

Low profile metalized shielded drum core power inductors.
Technical Data PM4311 Effective August 2017 Supersedes March 2007 SD Low profile metalized shielded drum core power inductors Applications

.
