BT697 Datasheet - Edal Industries

BT697 SUB-MINIATURE SILICON HIGH VOLTAGE RECTIFIER

Edal SERIES BT697 SUB-MINIATURE SILICON HIGH VOLTAGE RECTIFIER PART NUMBER PIV VOLTS Io AMPS 50o C Vf @ Io @ 25o C Ir @ PIV @ 25o C MAX SINGLE CYCLE SURGE CURRENT 250 AMPS 250 AMPS 250 AMPS Trr 100 nSec 100 nSec 100 nSec BT697-20 2000 1.5 4.5 10 uA BT697-25 2500 1.5 6.0 10 uA BT697-30 3000 1.5 6.0 10 uA o Maximum Ambient Operating Temperature 55 C to +125o C Recovery Time: .5 Amp Forward to 1 Amp Reverse Recover to .25 Amp www.DataSheet4U.com (203) 467-2591 TEL (203) 469-5928 .

BT697_EdalIndustries.pdf

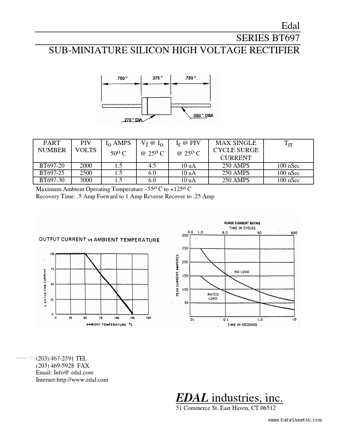

Preview of BT697 PDF

Datasheet Details

Part number:

BT697

Manufacturer:

Edal Industries

File Size:

243.05 KB

Description:

Sub-miniature silicon high voltage rectifier.
