Download the 12AU7 datasheet PDF.
This datasheet also covers the 12AU7-Ei variant, as both devices belong to the same double triode family and are provided as variant models within a single manufacturer datasheet.
Note: Below is a high-fidelity text extraction (approx. 800 characters) for
12AU7. For precise diagrams, and layout, please refer to the original PDF.

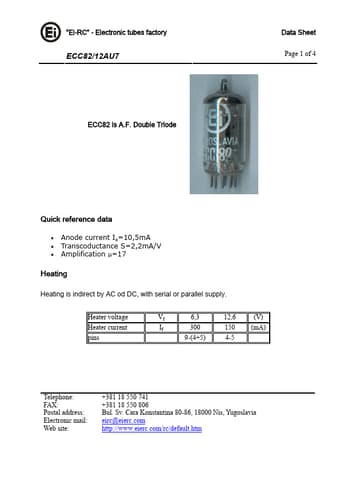

"Ei-RC" - Electronic tubes factory ECC82/12AU7 ECC82 is A.F. Double Triode Data Sheet Page 1 of 4 Quick reference data • Anode current Ia=10,5mA • Transcoductance S=2,2mA...
View more extracted text
ick reference data • Anode current Ia=10,5mA • Transcoductance S=2,2mA/V • Amplification µ=17 Heating Heating is indirect by AC od DC, with serial or parallel supply. Heater voltage Heater current pins Vf 6,3 12,6 (V) If 300 150 (mA) 9-(4+5) 4-5 Telephone: FAX: Postal address: Electronic mail: Web site: +381 18 550 741 +381 18 550 806 Bul. Sv. Cara Konstantina 80-86, 18000 Nis, Yugoslavia eirc@eierc.com http://www.eierc.com/rc/default.
12AU7 Datasheet
