EL2244C Datasheet, Amp, Elantec Semiconductor

EL2244C Features

  • Amp
  • 120MHz gain-bandwidth product
  • Unity-gain stable
  • Low supply current (per amplifier) - 5.2mA at VS = ±15V
  • Wide supply range - ±2V to ±18V dual-supp

PDF File Details

Part number:

EL2244C

Manufacturer:

Elantec Semiconductor

File Size:

513.67kb

Download:

📄 Datasheet

Description:

Dual/quad low-power 120mhz unity-gain stable op amp. The EL2244C/EL2444C are dual and quad versions of the popular EL2044C. They are high speed, low power, low cost monolithic operationa

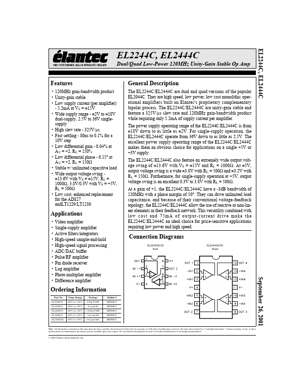

Datasheet Preview: EL2244C 📥 Download PDF (513.67kb)
Page 2 of EL2244C Page 3 of EL2244C

EL2244C Application

  • Applications on a single +5V or +3V supply. The EL2244C/EL2444C also feature an extremely wide output voltage swing of ±13.6V with VS = ±15V and RL
