EL400C

200MHz Current Feedback Amplifier

Elantec Semiconductor

EL400C Features

* 200MHz -3dB bandwidth, AV = 2 12ns settling to 0.05% VS = ±5V @ 15mA Low distortion: HD2, HD3 @ -60dBc at 20MHz Differential gain 0.02% at NTSC, PAL Differential phase 0.01° at NTSC, PAL Overload/shor

EL400C General Description

The EL400C is a wide bandwidth, fast settling monolithic amplifier built using an advanced complementary bipolar process. This amplifier uses current-mode feedback to achieve more bandwidth at a given gain than conventional operational amplifiers. Designed for closedloop gains of ±1 to ±8, the EL400.

EL400C Datasheet (428.00 KB)

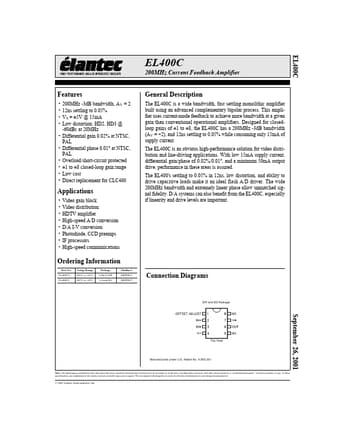

EL400C Datasheet Preview — Preview of EL400C PDF

Datasheet Details

Part number:

EL400C

Manufacturer:

Elantec Semiconductor

File Size:

428.00 KB

Description:

200mhz current feedback amplifier.
