EL1602B

Display Module

EL1602B Features

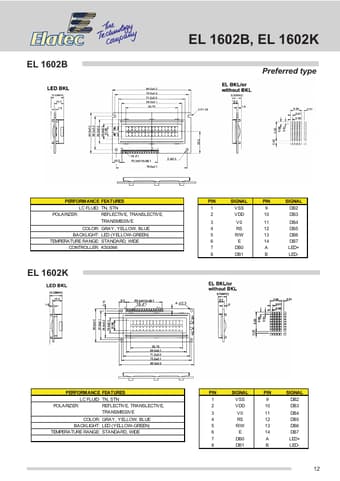

* LC FLUID: TN, STN POLARIZER: REFLECTIVE, TRANSLECTIVE, TRANSMISSIVE COLOR: BACKLIGHT: TEMPERATURE RANGE: CONTROLLER: GRAY, YELLOW, BLUE LED (YELLOW-GREEN) STANDARD, WIDE KS0066 PIN 1 2 3 4 5 6 7 8 SIGNAL VSS VDD V0 RS R/W E DB0 DB1 PIN 9 10 11 12 13 14 A B SIGNAL DB2 DB3 DB4 DB5 DB6 DB7 LED+ LED

EL1602B Datasheet (796.82 KB)

Preview of EL1602B PDF

Datasheet Details

Part number:

EL1602B

Manufacturer:

Elatec

File Size:

796.82 KB

Description:

Display module.
