SEUC236T5V4U - SuperESD

SEUC236T5V4U Description

SEUC236T5V4U Rev-2021-1 www.elecsuper.com SuperESD - SEUC236T5V4U 1..
The SEUC236T5V4U is designed to protect voltage sensitive components from ESD and transient voltage events.

SEUC236T5V4U Features

* IEC 61000-4-2 Level 4 ESD Protection - ±12kV Contact Discharge - ±17kV Air Discharge
* 60W Peak pulse Power (8/20us)
* Low clamping voltage
* Working voltage: 5V
* Low leakage current
* RoHS compliant
* Protecting 4 unidirectional lines
* Ultra-low capacitance: 0.6

SEUC236T5V4U Applications

* USB 2.0
* Monitors and flat panel displays
* 10/100/1000 ethernet
* Notebook computers
* SIM ports
* ATM interface 4. Ordering Information Part Number SEUC236T5V4U Package SOT-236L Marking Material Packing . V05 Halogen Tape & free Reel Table-1 Ordering information

📥 Download Datasheet

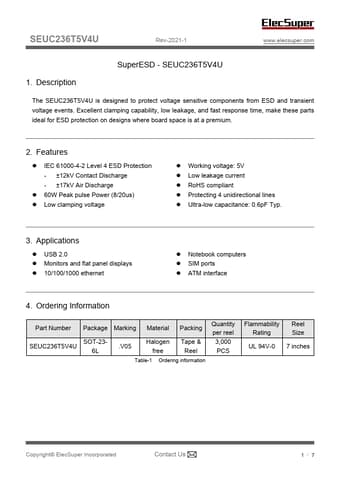

SEUC236T5V4U Datasheet Preview — Preview of SEUC236T5V4U PDF

Datasheet Details

Part number: SEUC236T5V4U
Manufacturer: ElecSuper
File Size: 290.52 KB
Datasheet: SEUC236T5V4U-ElecSuper.pdf
Description: SuperESD
