AD82587 - Mono Digital Audio Amplifier

Datasheet Summary

Description

10V~26V for loudspeaker driver Loudspeaker output power for 24V 10W x 2CH into 8Ω @0.27% THD+N for stereo 15W x 2CH into 8Ω @0.35% THD+N for stereo 20W x 1CH into 4Ω @0.25% THD+N for mono AD82587 is a digital audio amplifier capable of driving a pair of 8Ω,15W or a single 4Ω,30W speaker, bot

Features

I2C control interface.
16/18/20/24-bit input with I2S, Left-alignment and Right-alignment data format.
PSNR & DR (A-weighting).
Zero detection.
Power limit function.
Quaternary and ternary switch Loudspeaker: 97dB (PSNR), 105dB (DR) @24V.
Multiple sampling frequencies (Fs).

Datasheet Details

Part number	AD82587
Manufacturer	Elite Semiconductor
File Size	763.62 KB
Description	Mono Digital Audio Amplifier
Datasheet	AD82587 Datasheet
Additional preview pages of the AD82587 datasheet.

📁 Similar Datasheet

AD82581 - 2x15W Stereo / 1x30W Mono Digital Audio Amplifier (ESMT)

AD82583 - 2 x 20W Stereo / 1 x 40W Mono Class-D Audio Amplifier (ESMT)

AD82584D - 2 x 25W Stereo / 1 x 50W Mono Digital Audio Amplifier (ESMT)

AD82584F - Mono Digital Audio Amplifier (ESMT)

AD82589 - 2 x 20W Stereo / 1 x 40W Mono Digital Audio Amplifier (ESMT)

AD8258A - Stereo/Mono Digital Audio Amplifier (Elite Semiconductor Memory Technology)

AD825 - Low Cost/ General Purpose High Speed JFET Amplifier (Analog Devices)

AD8250 - programmable instrumentation amplifier (Analog Devices)

AD8251 - Programmable Gain Instrumentation Amplifier (Analog Devices)

AD8253 - Programmable Gain Instrumentation Amplifier (Analog Devices)

Full PDF Text Transcription

Click to expand full text

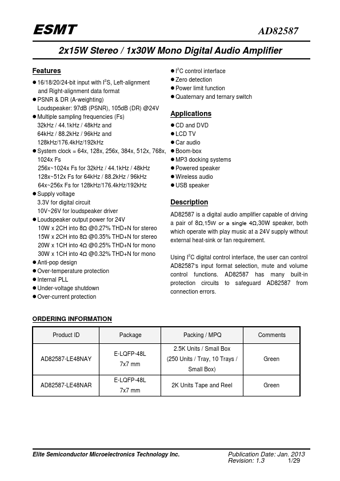

ESMT AD82587 2x15W Stereo / 1x30W Mono Digital Audio Amplifier Features  I2C control interface  16/18/20/24-bit input with I2S, Left-alignment and Right-alignment data format  PSNR & DR (A-weighting)  Zero detection  Power limit function  Quaternary and ternary switch Loudspeaker: 97dB (PSNR), 105dB (DR) @24V  Multiple sampling frequencies (Fs) Applications 32kHz / 44.1kHz / 48kHz and  CD and DVD 64kHz / 88.2kHz / 96kHz and  LCD TV 128kHz/176.4kHz/192kHz  Car audio  System clock = 64x, 128x, 256x, 384x, 512x, 768x,  Boom-box 1024x Fs  MP3 docking systems 256x~1024x Fs for 32kHz / 44.1kHz / 48kHz  Powered speaker 128x~512x Fs for 64kHz / 88.2kHz / 96kHz  Wireless audio 64x~256x Fs for 128kHz/176.4kHz/192kHz  USB speaker  Supply voltage 3.
