C2688 - NPN Epitaxial Silicon Transistor

Elite

Datasheet Details

Part number	C2688
Manufacturer	Elite
File Size	33.15 KB
Description	NPN Epitaxial Silicon Transistor
Datasheet	C2688 Datasheet
Additional preview pages of the C2688 datasheet.

📁 Similar Datasheet

C2688 - 2SC2688 (UTC)
C2688 - NPN Silicon Transistor (FGX)
C2681 - 2SC2681 (SavantIC)
C2682 - 2SC2682 (SavantIC)
C2610 - 2SC2610 (Renesas)
C2611 - 2SC2611 (Hitachi Semiconductor)
C2611 - TRANSISTOR (Jiangsu Changjiang Electronics)
C2611 - Plastic-Encapsulated Transistors (TRANSYS Electronics)
C2612 - 2SC2612 (Hitachi Semiconductor)
C2615 - 2SC2615 (SavantIC)

Other Datasheets by Elite

Full PDF Text Transcription

Click to expand full text

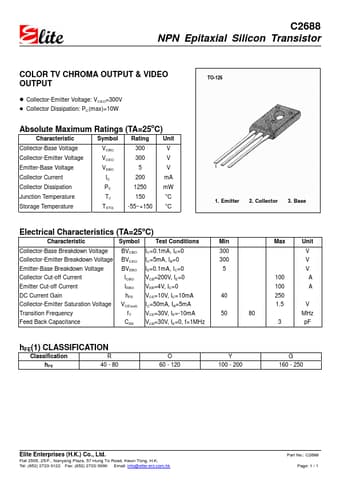

C2688 NPN Epitaxial Silicon Transistor COLOR TV CHROMA OUTPUT & VIDEO OUTPUT Collector-Emitter Voltage: VCEO=300V Collector Dissipation: PC(max)=10W TO-126 Absolute Maximum Ratings (TA=25oC) Characteristic Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Dissipation Junction Temperature Storage Temperature Symbol VCBO VCEO VEBO IC PC TJ TSTG Rating 300 300 5 200 1250 150 -55~+150 Unit V V V mA mW o o C C 1. Emitter 2. Collector 3.
