MC-4R128FKK8K - 128MB 32-bit Direct Rambus DRAM RIMM Module

Elpida Memory

📥 Download Datasheet

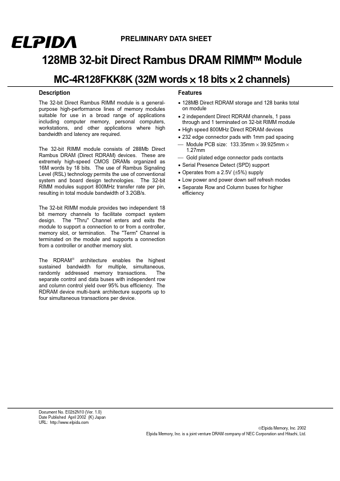

MC-4R128FKK8K Datasheet Preview — Preview of MC-4R128FKK8K PDF

Datasheet Details

Part number: MC-4R128FKK8K
Manufacturer: Elpida Memory
File Size: 88.58 KB
Datasheet: MC-4R128FKK8K_ElpidaMemory.pdf
Description: 128MB 32-bit Direct Rambus DRAM RIMM Module

MC-4R128FKK8K Product details

Description

The 32-bit Direct Rambus RIMM module is a generalpurpose high-performance lines of memory modules suitable for use in a broad range of applications including computer memory, personal computers, workstations, and other applications where high bandwidth and latency are required.

Features

128MB Direct RDRAM storage and 128 banks total on module.
2 independent Direct RDRAM channels, 1 pass through and 1 terminated on 32-bit RIMM module.
High speed 800MHz Direct RDRAM devices.
232 edge connector pads with 1mm pad spacing  Module PCB size: 133.35mm × 39.925mm × 1.27mm  Gold plated edge connector pads contacts.
Serial Presence Detect (SPD) support.
Operates from a 2.5V (±5%) supply.
Low power and power down self refres.
