Description

The EDS1216AATA is a 128M bits SDRAM organized as 2,097,152 words × 16 bits × 4 banks.

All inputs and outputs are synchronized with the positive edge of the clock.

It is packaged in 54-pin plastic TSOP (II).

Features

  • 3.3V power supply Clock frequency: 133MHz (max. ) Single pulsed /RAS ×16 organization 4 banks can operate simultaneously and independently.
  • Burst read/write operation and burst read/single write operation capability.
  • Programmable burst length (BL): 1, 2, 4, 8, full page.
  • 2 variations of burst sequence  Sequential (BL = 1, 2, 4, 8, full page)  Interleave (BL = 1, 2, 4, 8).
  • Programmable /CAS latency (CL): 2, 3.

📥 Download Datasheet

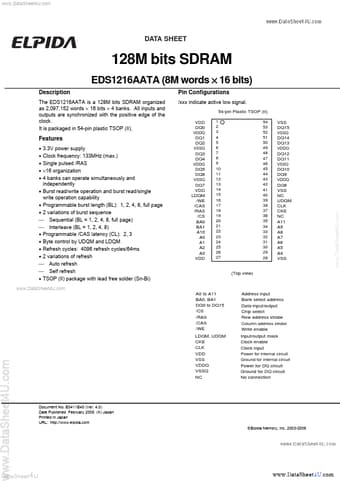

Datasheet preview – S1216AATA-75-E
