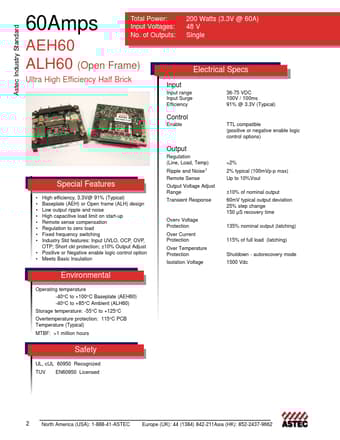

ALH60F48N Datasheet - Emerson

ALH60F48N DC-DC / Intermediate Bus Converter

60Amps Total Power: Input Voltages: No. of Outputs: 200 Watts (3.3V @ 60A) 48 V Single AEH60 ALH60 (Open Frame) Ultra High Efficiency Half Brick Input Input range Input Surge Efficiency Electrical Specs 36-75 VDC 100V / 100ms 91% @ 3.3V (Typical) Control Enable TTL compatible (positive or negative enable logic control options) Output Regulation (Line, Load, Temp) Ripple and Noise1 Remote Sense <2% 2% typical (100mVp-p max) Up to 10%Vout ±10% of nominal output 60mV typical output deviation .

ALH60F48N Features

* High efficiency, 3.3V@ 91% (Typical) Baseplate (AEH) or Open frame (ALH) design Low output ripple and noise High capacitive load limit on start-up Remote sense compensation Regulation to zero load Fixed frequency switchi
