EXB30-48S3V3J Datasheet - Emerson

EXB30-48S3V3J DC-DC / Industry Standard Isolated Half Brick

EXB30 Series DC-DC CONVERTERS Single output 16-30 W High Efficiency DC-DC Converters 1 High efficiency topology, 92% typical at 5 V Industry standard footprint Wide operating temperature, -40 ˚C to +85 ˚C (natural convection) 80% to 110% output trim No minimum load Overvoltage and overtemperature protection Remote sense compensation Remote ON/OFF Available RoHS compliant The EXB30 is a new high efficiency.

EXB30-48S3V3J Features

* are included as standard. With full international safety approval including EN60950 and cUL1950, the EXB30 reduces compliance costs and time to market. All specifications are typical at nominal input, full load at 25 °C unless otherwise stated 2 YEAR WARRANTY SPECIFICATIONS OUTPUT SPECIFICATIONS

EXB30-48S3V3J Datasheet (118.58 KB)

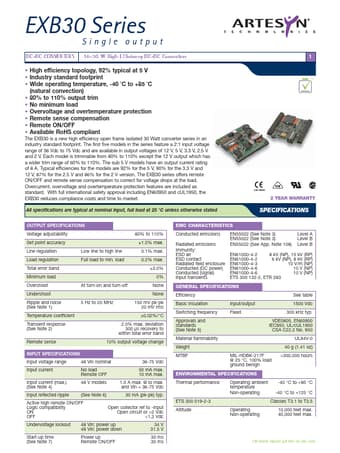

Preview of EXB30-48S3V3J PDF

Datasheet Details

Part number:

EXB30-48S3V3J

Manufacturer:

Emerson

File Size:

118.58 KB

Description:

Dc-dc / industry standard isolated half brick.
