LES10A48-5V0RAKJ DC-DC / Industry Standard Isolated Eighth Brick

Eighth-Brick Series Single output DC/DC CONVERTERS High Current, High Efficiency, Low Profile NEW Product 1 Ultra-high efficiency topology Industry standard eighth brick footprint (identical to quarter-brick pinout) Low profile through-hole version Low profile with 38% space savings over other quarter-brick brick converters Wide ambient temperature range, -40 ºC to +85 ºC 80% to 110% output trim M.

LES10A48-5V0RAKJ Features

* an input voltage range of 18 Vdc to 36 Vdc and 36 Vdc to 75 Vdc and is available with output voltages of 1.2 V, 1.5 V 1.8 V, 2.5 V, 3.3 V and 5.0 V. The output voltage is adjustable from 80% to 110% of the nominal value. The series also has a remote ON/OFF capability. Overcurrent, overvoltage and ov

LES10A48-5V0RAKJ_eighth_brick_ds_1201814795_Emerson.pdf

This datasheet PDF includes multiple part numbers: LES10A48-5V0RAKJ, LES10A48-5V0RAKJ_eighth_brick_ds_1201814795. Please refer to the document for exact specifications by model.

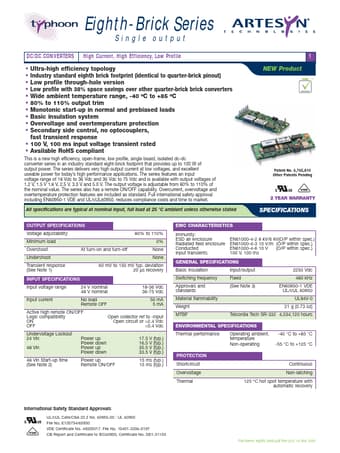

LES10A48-5V0RAKJ Datasheet Preview Page 2 LES10A48-5V0RAKJ Datasheet Preview Page 3

Datasheet Details

Part number:

LES10A48-5V0RAKJ, LES10A48-5V0RAKJ_eighth_brick_ds_1201814795

Manufacturer:

Emerson

File Size:

111.97 KB

Description:

Dc-dc / industry standard isolated eighth brick.

Note:

This datasheet PDF includes multiple part numbers: LES10A48-5V0RAKJ, LES10A48-5V0RAKJ_eighth_brick_ds_1201814795.
Please refer to the document for exact specifications by model.
