MA-505 Datasheet - Epson Company

MA-505 MHz RANGE CRYSTAL UNIT

Crystal unit MHz RANGE CRYSTAL UNIT Product Number (please contact us) MA-406 : Q22MA4062xxxx00 MA-505 : Q22MA5052xxxx00 MA-506 : Q22MA5062xxxx00 MA - 406 MA - 505 / MA - 506 Frequency range Thickness Overtone order Applications : 4 MHz to 64 MHz : 11.7 × 4.8 × 3.7 mm MA-406 : 13.46 × 5.08 × 4.6 mm MA-505 / 506 : Fundamental 3rd overtone (30 MHz to 64 MHz) : For Clock of integrated circuit Actual size MA-406 MA-505 / 506 Specifications (c.

MA-505_EpsonCompany.pdf

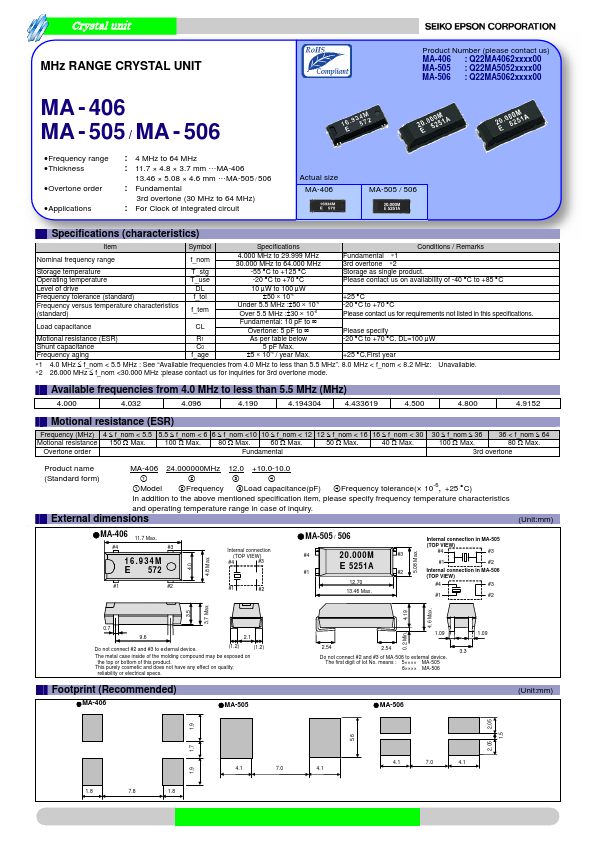

Preview of MA-505 PDF

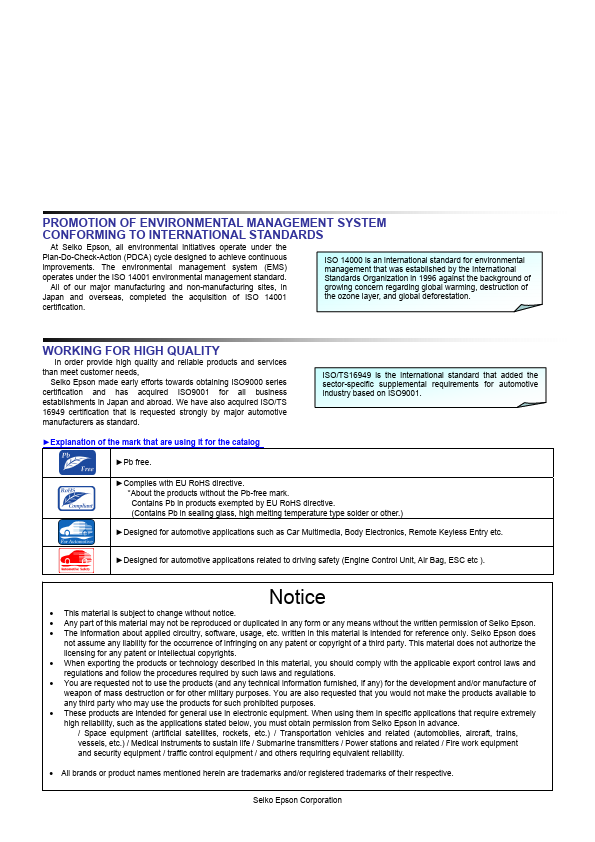

MA-505 Datasheet Preview Page 2

Datasheet Details

Part number:

MA-505

Manufacturer:

Epson Company

File Size:

391.26 KB

Description:

Mhz range crystal unit.
